When you hear about the grand suspension bridges spanning North America, Ralph Modjeski might not be the first name that comes to mind.
But this Polish-American engineer, with deep roots in Europe and the U.S., played an indispensable role in shaping the architecture of American bridges.
From Polish Aristocracy to American Citizenship
Ralph Modjeski was born in Bochnia, Galicia, on January 27, 1861. The Galicia region is now part of south-east Poland and western Ukraine, with Bochnia being slightly West of Krakow.
His parents were Gustav Sinnmayer Modrzejewski and actress Helena Opid Modrzejewska, who later became known as Helena Modjeska outside of Poland.
At age 6, his father kidnapped him for three years after his parents’ separation. In his younger years, Rudolph was a classmate of Ignacy Jan Paderewski and a talented pianist in his own right.
In 1868, Helena married “Count” Karol Bożenta Chłapowski, and by 1876, they had moved to America.
His educational journey was as illustrious as one would imagine. Returning to Europe, he studied at the prestigious École des Ponts et Chaussées in Paris, although he initially failed the entrance exam.
After gaining American citizenship in 1883 while still studying in Paris, he shortened his name to Ralph Modjeski for easier pronunciation.
Despite this, he remained deeply connected to his Polish roots, frequently writing in Polish and highlighting his Polish heritage.
Music and Engineering: A Unique Blend
Interestingly, Ralph’s first love wasn’t engineering but classical music. Particularly enamoured with the compositions of Chopin, he began piano lessons at age 10. The great Paderewski profoundly influenced his style.
To Ralph, playing Chopin wasn’t just an act but an emotional journey; he stated that he can’t use words to describe Chopin’s music.
An Engineering Legacy in America
Upon concluding his studies in Paris, Ralph returned to the U.S., setting roots by marrying Felicja Bendówna and fathering three children. His engineering journey began under the mentorship of George Morrison, popularly dubbed the “Father of American Bridge Building.”
In 1893, Ralph took a significant step by opening his design office, “Modjeski & Masters”, in Chicago – a firm still under the same name.
From there, his accomplishments soared. His debut as a chief engineer saw the rise of a railroad bridge over the Mississippi River in Rock Island, Illinois. Ralph’s career boasts of not just one or two but dozens of bridges where he served as either the chief engineer or consultant.
Ralph Modjeski’s Technical Breakthroughs in Bridge Building
Ralph Modjeski’s work in bridge engineering was not just innovative but transformative. During a time when bridge construction was still relying on traditional materials and methods, Modjeski’s approach ushered in a new era of stability, safety, and efficiency. Let’s delve into the nuances of his innovations, comparing them with the prevalent practices of his time:
Embracing Silicon Steel
The primary materials used in bridge construction during the late 19th and early 20th centuries were wrought iron and structural steel. Wrought iron was durable and malleable but lacked the tensile strength needed for longer spans. Structural steel provided more strength, but its magnetic properties weren’t ideal for all applications.
Modjeski’s Insight: Introducing silicon steel was a game-changer. This material, known for its superb magnetic properties, turned out to have several benefits for bridge building:
- Strength and Flexibility: Silicon steel’s strength-to-weight ratio outperformed the traditional materials, making it possible to design longer spans with confidence in their stability.
- Corrosion Resistance: Bridges, often at the mercy of environmental conditions, found a friend in silicon steel. It resisted the wear and tear caused by the elements far better than its predecessors.
- Economic Benefits: In the long run, the durability of silicon steel meant fewer repairs and longer bridge lifespans. This translated into significant savings in maintenance costs.
Championing the Use of Concrete:
Before Modjeski’s influence, bridges primarily relied on stone masonry, timber, and iron. Stone was durable but lacked flexibility. Though abundant and easy to work with, Timber was susceptible to rot and fire. Iron bridges were strong but corroded quickly without proper treatment.
Modjeski’s Insight: By pioneering the large-scale use of concrete in bridges, Modjeski addressed many of the limitations of traditional materials:
- Versatility: Concrete’s ability to be poured and moulded allowed designers to move beyond the geometric restrictions of stone and timber, opening up many design possibilities.
- Endurance: Reinforced concrete can handle immense loads, making it suitable for bridges expected to endure heavy traffic and the test of time.
- Reduced Maintenance: Concrete’s resilience meant fewer repairs and disruptions, a welcome advantage over wood and iron constructions.
Revolutionizing Suspension Bridge Testing
The traditional approach to testing bridges mainly involved static load tests. Engineers would place heavy loads on a bridge and measure its response. However, these tests often didn’t account for the dynamic forces that suspension bridges encounter, like wind or varying traffic conditions.
Modjeski’s Insight: Ralph introduced innovative methods of testing suspension bridges that considered these dynamic forces:
- Dynamic Testing: Recognizing that static tests were insufficient for suspension bridges, Modjeski emphasized the importance of understanding how these structures responded to changing loads and conditions.
- Model Testing: Before constructing the bridge, Modjeski advocated using scale models to predict and address potential challenges. This approach significantly improved the reliability and safety of the resulting bridges.
Modjeski & the Golden Gate Bridge
Ralph Modjeski and Joseph B. Strauss, two titans in the world of bridge engineering, indelibly shaped how we conceive and build bridges today. Their paths did intersect, with Modjeski playing the role of mentor to a younger Strauss.
Joseph B. Strauss was an ambitious engineer with a flair for innovation. Strauss, initially focusing on bascule bridges, soon expanded his horizons.
Under Modjeski’s influence, Strauss imbibed invaluable lessons that would eventually help him conceive the idea of the Golden Gate Bridge. While he started as the chief engineer for the project, the final design influenced other prominent engineers like Irving Morrow and Leon Moisseiff.
Career in Dates:
- 1882–1885: Studied at the École nationale des ponts et chaussées in Paris, graduating with honors.
- 1885: Worked as an assistant bridge builder under George S. Morison.
- 1893: Opened his own design office in Chicago.
- 1902–1905: The Modjeski & Masters company executed a bridge project in Thebes for the Southern Illinois and Missouri Company, marking the first large-scale use of concrete for spans.
- 1903: Recognized by the American press as the premier specialist in bridge construction and named Engineer of the Year by the ASCE Technical Association.
- 1911: Awarded a Doctor of Engineering degree from the University of Illinois.
- 1913: Published a scientific dissertation on the design of large bridges.
- 1922: Received a medal from the Institute of B. Franklin in Philadelphia.
- 1929: Honored with the John Fritz Gold Medal, the top American award in engineering.
- 1929: Bestowed an honorary doctorate from the Lviv Polytechnic.
Selected Projects
Constructed over 30 bridges across American rivers.
- Thebes Bridge on the Mississippi, Thebes, Illinois (1904).
- McKinley Bridge (1910).
- Cherry Street Highway Bridge (1912).
- Harahan Bridge in Memphis (1916).
- Quebec Railway in Canada (1917).
- Benjamin Franklin Bridge in Philadelphia (1926).
- Ambassador Bridge in Detroit (1929).
- Mid-Hudson Bridge in Poughkeepsie (1930).
- Huey P. Long in New Orleans (1936).
- San Francisco–Oakland Bay Bridge (1936).
- Blue Water Bridge, connecting Port Huron, Michigan, USA to Sarnia, Ontario, Canada (1938).
Tragedy at the Quebec Bridge
Ralph’s association with the Quebec Bridge has a sombre note. The initial construction of this rail-road bridge began in 1903 by the Phoenix Bridge Company from Pennsylvania.
Due to severe miscalculations, the bridge’s actual weight surpassed its load-bearing capacity. Despite warnings, the construction continued.
In 1907, a significant part of the bridge collapsed into the Saint Lawrence River, claiming 76 lives, including 33 Mohawk Indians known for their unparalleled skill in high-altitude construction.
All these Mohawks found their final resting place at the Kahnawake family reservation. Other victims comprised 17 Americans and 26 Quebecers. The Huron Indians also claimed losses, though they aren’t officially listed.
Death & Tributes
He died on June 26, 1940 in Los Angeles. He was 79 years old.
Several bridges in Poland are named after him:

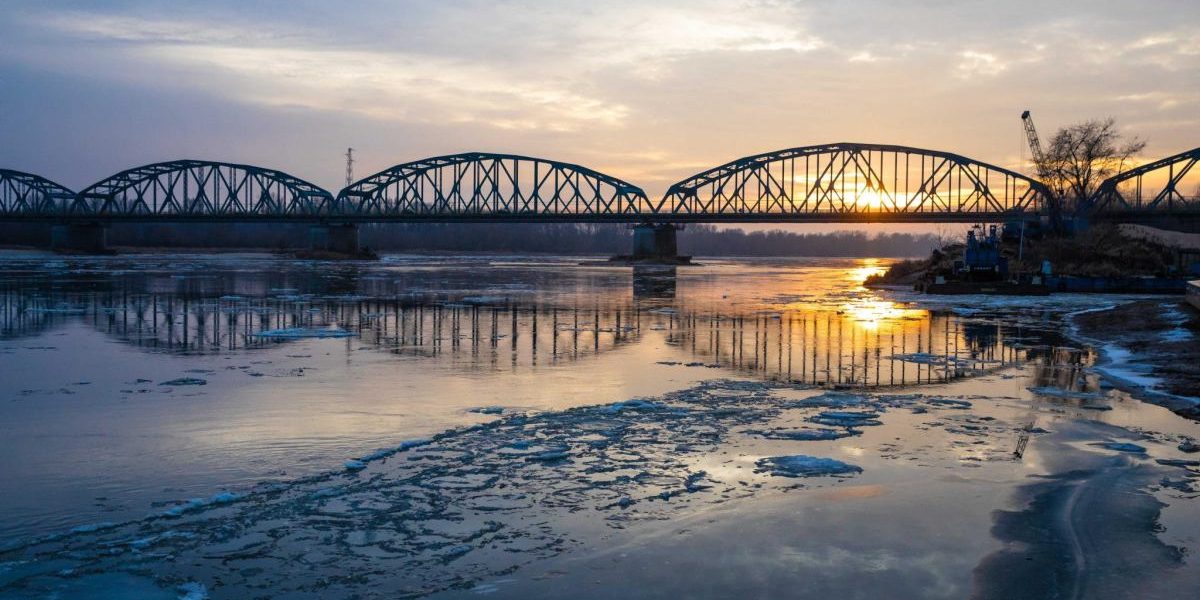

- In March 2008, the Fordon Bridge in Bydgoszcz was dedicated in his name.
- The Geodetic and Road School Complex in Poznań is named in his honour.
- As of 2019, a street in Wrocław’s Brochów carries his name as its patron.
Epilogue
Ralph Modjeski’s life was a bridge connecting two worlds, two cultures, and two disciplines. His legacy as a pioneer in bridge engineering stands firm, bridging the past with the present.
